Did you know the wrong pipe fitting can cause serious disruptions in your piping system? Choosing between an Equal Tee and a Reducing Tee could be the difference between smooth operation and costly maintenance.In this post, we’ll break down the key differences between these two essential fittings and explain when to use each one. You’ll learn how to make the best decision for your system’s flow needs, pressure requirements, and cost-efficiency.
An Equal Tee, often called a "straight tee," features three ports, all with identical diameters, like 4" x 4" x 4". This simple, symmetrical design ensures a balanced flow of fluid in all directions.
It evenly splits the flow, making it perfect for applications where uniform distribution is critical.
Equal Tees maintain consistent pressure across branches, ensuring smooth operation in various systems.
The common materials used are stainless steel, particularly grades like 304 and 316L. These materials offer excellent corrosion resistance, making the Equal Tee ideal for industries with harsh environments, such as chemical processing or water distribution systems.
In terms of performance, Equal Tees are ideal for systems that demand equal pressure and flow, whether it's in HVAC systems or large water networks. The uniform diameter at each branch helps prevent turbulence and pressure imbalances, making it a go-to choice in many pipingnetworks.

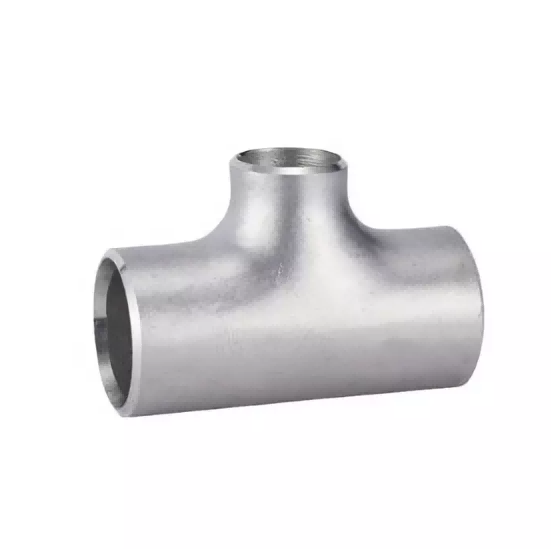

A Reducing Tee, as the name suggests, features one branch that has a smaller diameter than the main pipe, such as 4" x 4" x 3". This tee allows for a change in pipe size, which is useful when transitioning between pipes of different sizes.
Reducing Tees are commonly used to manage flow transitions and accommodate different pipe sizes in a system. The smaller branch diameter helps reduce pressure in certain parts of the system or adjusts the flow rate to meet specific needs.
These tees are often made from stainless steel, nickel alloys, or titanium, depending on the requirements of the system. These materials are especially beneficial when high pressure, temperature, or corrosive environments are involved.
The Reducing Tee plays a significant role in industrial systems, especially where pipes of various sizes need to be connected without creating excessive pressure drop or flow disruption. It helps ensure that the flow transitions smoothly from one diameter to another without causing strain or backflow in the system.
Both Equal Tee and Reducing Tee are typically crafted from austenitic stainless steel (grades 304, 316L), which provides excellent resistance to corrosion, making them perfect for harsh environments. These materials are resistant to pitting and stress corrosion, ensuring that the tees perform well in industries such as chemical processing, water treatment, and food processing.
For more specialized environments, other materials are often used:
Duplex steel: Known for its high strength and resistance to chloride stress cracking, it’s ideal for more demanding applications.
Nickel alloys and titanium: These materials are chosen for their superior resistance to extreme temperatures and aggressive chemical exposure, often found in high-performance industrial applications.
These material choices help ensure that both Equal Tees and Reducing Tees provide long-lasting durability, reducing the need for frequent replacements or repairs in critical systems.
The manufacturing of Equal Tees and Reducing Tees follows strict processes to ensure they meet the required standards for different piping systems.
Cold Forming: For tees up to 24" in diameter, cold forming is typically used. This method creates seamless tees that ensure high-quality connections.
Welding: For larger sizes (up to 110"), welding is employed to create strong, durable joints that can withstand high pressures.
Butt Welding (ASME B16.9): This process is used for high-pressure systems, where strong, reliable joints are crucial for system integrity.
Threaded/Socket Weld (ASME B16.11): Commonly used for smaller diameter tees, this method allows easy installation without requiring complex welding procedures.
Each of these manufacturing techniques is selected based on the tee’s size and the pressure and temperature requirements of the system.
These customizable options allow for a wide range of uses, from general plumbing systems to specialized industrial applications, ensuring that every installation meets its unique requirements.
Chemical Industry: In the chemical industry, Equal Tees are often used to distribute fluids evenly between reactors and heat exchangers. Their ability to split the flow evenly ensures consistent processing conditions across all branches.
HVAC Systems: Equal Tees play a crucial role in HVAC systems by balancing airflow in heating and cooling networks. By ensuring uniform distribution, they help maintain consistent temperature control throughout the system.
Power Plants: Equal Tees are used in power plants to handle steam and water in high-pressure pipelines. Their design helps maintain consistent flow, ensuring that the system operates efficiently without pressure fluctuations.
Drainage Systems: In residential and commercial buildings, Reducing Tees are essential for connecting pipes of different diameters in drainage systems. These tees help direct wastewater efficiently while accommodating varying pipe sizes.
Oil & Gas: In the oil and gas industry, Reducing Tees are used to transition between pipeline segments with different diameters during extraction and refining processes. They ensure smooth fluid flow, even as pipe sizes change, without creating backflow or excessive pressure.
Food and Beverage: Reducing Tees are commonly used in food processing industries, such as brewing and dairy processing. They help create sanitary connections between different-sized pipes, ensuring smooth, hygienic fluid flow in sensitive environments.
Size Range: Equal Tees come in sizes ranging from 1/2" to 80" (DN15 to DN2000). This wide size range allows them to be used in various systems, from residential plumbing to large industrial pipelines.
Pressure Ratings: For general use, Equal Tees can handle pressures up to 10 bar, while specialized hydraulic systems can support pressures of up to 800 bar. This flexibility makes them suitable for both low-pressure and high-pressure applications.
Temperature Range: Equal Tees can operate in temperatures ranging from -10°C to 200°C. For systems requiring higher temperature resistance, alloy variants can be used, which offer even more enhanced performance in extreme conditions.
Corrosion Resistance: Constructed with corrosion-resistant materials like stainless steel, Equal Tees are highly resistant to pitting and sulfide stress corrosion. This makes them ideal for use in harsh environments such as chemical processing, water distribution, and offshore platforms.
Size Combinations: Reducing Tees are typically available in common configurations, such as 4" x 4" x 3" or 2" x 2" x 1.5". These configurations allow them to transition fluid flow between pipes of different diameters, ensuring smooth operation in systems that require size adjustments.
Corrosion Resistance: Like Equal Tees, Reducing Tees are resistant to chloride pitting and sulfide stress corrosion, ensuring durability even in aggressive environments like chemical plants and offshore applications.
Sanitary Grades: In applications where hygiene is crucial, such as food and beverage processing, Reducing Tees often come with polished finishes (Ra ≤ 0.8μm), meeting FDA-compliant standards for sanitary connections.
Installation: Installing an Equal Tee is straightforward due to its symmetrical design. The uniform diameter at all ports allows for minimal alignment effort, making it easy to install in various systems. Whether it's a small residential piping network or a larger industrial setup, the process remains simple and efficient.
Maintenance: Equal Tees require periodic inspections, particularly for signs of corrosion. As they are often made from durable materials like stainless steel, they typically last 15+ years, especially when compared to carbon steel variants. Regular checks for rust, wear, or damage will help extend their service life and maintain system integrity.
Installation: Reducing Tees require more careful installation due to the variation in pipe sizes between the main and branch ports. Precise sizing is critical to avoid flow restrictions or leaks. For added convenience, push-fit technologies are commonly used, allowing for tool-free assembly, especially in tight spaces.
Maintenance: Like Equal Tees, Reducing Tees need periodic inspections. Focus should be given to potential wear at the branch connection, as the pressure changes in the transition zone may cause strain over time. Ensuring proper alignment and tightness at the connections can help prevent issues in the long term.
If you need uniform flow, Equal Tees are the best choice. They are designed to split fluid evenly across all branches, making them ideal for systems like water distribution and HVAC. On the other hand, Reducing Tees are perfect for systems where fluid needs to transition between different pipe sizes, such as in oil and gas pipelines or drainage systems.
When dealing with pipes of the same diameter, Equal Tees are the obvious option. Their symmetrical design ensures that flow is evenly distributed. However, if the pipe sizes vary, you must use a Reducing Tee. This tee helps connect pipes of different diameters, ensuring smooth and efficient flow even when the system requires size adjustments.
Choosing the right material for your tee is crucial. Both Equal Tees and Reducing Tees are available in a variety of materials, including stainless steel, carbon steel, and alloys. It's important to match the material with the fluid's characteristics and the operating environment to ensure long-lasting performance. For example, if the system handles corrosive liquids or high temperatures, a corrosion-resistant material like stainless steel is essential.
The ease of installation should also be considered. Equal Tees are generally simpler to install, as their symmetrical design requires less precision. However, Reducing Tees require more attention to detail due to the varying pipe sizes. Depending on your system’s setup, you may need welding, threading, or push-fit technologies. Push-fit tees are especially useful for tight spaces where traditional tools may not be suitable.
Equal Tees tend to be more affordable because of their standard design and widespread availability. If you're working with a limited budget, Equal Tees are often the more cost-effective option. On the other hand, Reducing Tees are usually more expensive due to the complexity of their design and the need for customization, especially in industrial systems that require specific flow control.
Choosing the right pipe fitting is essential for smooth and efficient system operation. Equal Tees are ideal for uniform flow and pressure, perfect for HVAC and water distribution systems. Reducing Tees are better for systems requiring transitions between different pipe sizes, like oil and gas pipelines. Consider flow needs, pipe sizes, material compatibility, and budget when making your choice. The right fitting ensures optimal performance and cost-effectiveness in your system. For more details on stainless steel tees, visit http://www.dejiasteel.com/.
