Stainless steel pipe fittings are critical components in a variety of industrial systems. But what makes them so essential? These fittings offer unmatched durability, corrosion resistance, and reliability. In this post, we’ll explore the different types of stainless steel pipe fittings, their uses, and why they’re preferred in industries like oil and gas, chemical processing, and food manufacturing. You'll learn about their functions and how to choose the right one for your needs.
Stainless steel pipe fittings come in various types, each designed for specific functions within a piping system. Below are the key fittings used in many industrial applications.
What is an elbow fitting?
An elbow fitting is used to change the direction of a pipe, allowing for smooth flow redirection.
When to use elbow fittings
Elbows are ideal when you need to divert fluid or gas flow in different directions without damaging the pipeline.
Different angles of elbow fittings
90° elbows: Sharp turns, commonly used in most piping systems.

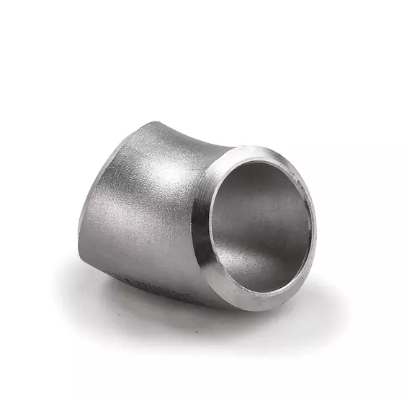

45° elbows: For gentler turns, helping minimize flow resistance.
22.5° elbows: Used for more gradual turns, ideal for large installations.

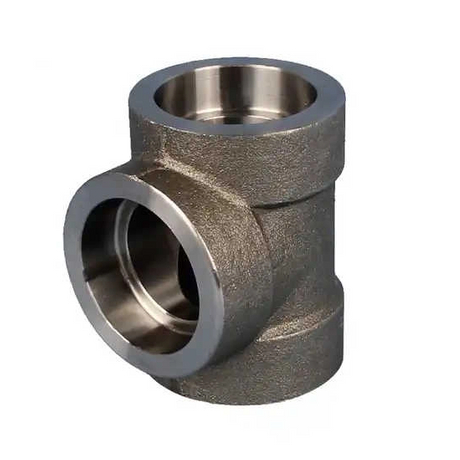

What are tee fittings?
Tee fittings connect three pipes at right angles, enabling fluid flow to branch off in multiple directions.
Types of tees
Equal tees: All three branches are the same size.
Reduced tees: One branch is smaller than the others.
Applications for tee fittings
Commonly used in industrial and domestic systems where multiple connections are needed from a single pipeline, such as in water or gas distribution.
What are reducers?
Reducers are used to connect pipes of different sizes, ensuring smooth fluid flow between sections.
Concentric vs. Eccentric reducers
Concentric reducers: The pipe centerlines remain aligned.
Eccentric reducers: Used when alignment is not required, often for draining or fluid movement purposes.
When to use reducers in piping systems
Reducers are essential for transitioning between pipes of varying diameters, particularly in water and gas pipelines.
What are cap fittings?
Caps are designed to seal the end of a pipe, preventing fluid or gas leakage.
The purpose of caps in sealing pipes
Used to close off open pipe ends, they ensure no leaks or contamination at the pipeline's termination point.
Types of caps
Threaded caps: Screwed onto the end of the pipe for a secure fit.
Unthreaded caps: Used for push-fit or welded connections.
What are coupling fittings?
Couplings join two pipes together, making it easier to extend or repair a pipeline.
How couplings help prevent leaks
They form a tight, leak-proof connection between pipes, ensuring smooth fluid flow.
Types of couplings and their uses
Full couplings: Used to connect two pipes of the same size.
Half couplings: Used for pipe branching.
What are flange fittings?
Flanges are used to join two sections of pipe, or pipe to equipment, by bolting them together.
Common types of flanges
Weld neck: Provides a strong, welded connection.
Slip-on: Slide onto the pipe and are welded.
Blind: Used to seal the end of a pipeline.
How flanges are used in industrial applications
Flanges are essential in high-pressure systems, where secure, leak-proof connections are critical.
What are cross fittings?
Cross fittings connect four pipes at 90-degree angles, allowing for fluid distribution in multiple directions.
When to use cross fittings
Ideal for systems that require four-way branching, commonly found in gas and fluid distribution networks.
Applications in gas distribution and piping systems
Used in gas distribution pipelines where multiple connections are necessary for efficient operation.
What are union fittings?
Union fittings are similar to couplings but allow for easy disconnection of pipes for maintenance or replacement.
The importance of union fittings in easy disconnections and maintenance
They provide a convenient solution when sections of the pipeline need to be removed or replaced without disturbing the entire system.
Common applications for union fittings
Union fittings are often used in plumbing systems and equipment where parts must be replaced frequently.
Stainless steel pipe fittings play a crucial role in ensuring the efficiency and reliability of industrial piping systems. Let’s take a closer look at how these fittings help maintain system integrity across various applications.
One of the primary functions of stainless steel pipe fittings is to ensure leak-free connections. By tightly sealing pipe joints, they prevent the escape of fluids or gases, which could otherwise lead to safety hazards, environmental damage, or loss of material. Whether it's through threaded, welded, or flanged connections, these fittings form a secure bond that minimizes leaks.
Industrial systems often operate under extreme conditions, including high pressure and temperatures. Stainless steel pipe fittings are engineered to withstand these challenges. Their strength and durability make them ideal for high-pressure environments, such as in the oil and gas industry, or in systems where heat is a significant factor. They maintain their integrity even when exposed to fluctuating pressures and temperatures, ensuring continuous operation.
In industries like chemical processing and marine operations, pipelines are constantly exposed to harsh chemicals or saltwater. Stainless steel fittings, thanks to their corrosion-resistant properties, help safeguard the system against degradation. They prevent rust and corrosion, extending the life of the system and reducing maintenance costs.
The primary goal of any piping system is to facilitate smooth and efficient fluid flow. Stainless steel pipe fittings, whether they are elbows, tees, or reducers, are designed to allow for optimal flow. Their smooth interior surfaces help reduce friction, ensuring that fluids move without obstruction, which enhances the overall efficiency of the system.
Stainless steel pipe fittings offer numerous advantages that make them a preferred choice across industries. From their corrosion resistance to aesthetic appeal, these fittings provide reliable and long-lasting solutions.
Why stainless steel resists rust and corrosion
Stainless steel is a chromium-based alloy. The chromium forms a protective oxide layer on the surface, preventing rust and corrosion. This self-healing layer ensures that even when scratched, the material is protected from further degradation.
Long-lasting durability in various industries
Thanks to their corrosion resistance, stainless steel fittings maintain their integrity in harsh environments like chemical plants, marine systems, and oil and gas pipelines, where exposure to moisture and chemicals is constant.
Why stainless steel fittings can withstand high pressures and extreme temperatures
Stainless steel fittings are designed to handle significant mechanical stress. Their strong structure enables them to withstand high pressures and temperatures, making them ideal for critical systems like oil and gas pipelines, or systems that involve heat transfer.
Comparing stainless steel fittings to other materials
Unlike materials like copper or plastic, stainless steel doesn't warp under pressure or degrade at high temperatures, making it the superior choice for tough industrial environments.
Easy cleaning and maintenance in food, beverage, and pharmaceutical industries
Stainless steel’s smooth surface doesn’t harbor bacteria or contaminants, making it the ideal material for industries where hygiene is critical. It is easy to clean, reducing the risk of contamination in food processing or pharmaceutical applications.
Why stainless steel is used in architectural applications
Apart from its functionality, stainless steel has an attractive, sleek look. Its shiny finish and modern appearance make it popular for architectural uses, such as handrails, supports, and other structural elements in contemporary buildings.
Aesthetics in modern construction and design
In the world of construction and design, stainless steel fittings are used not only for their strength but also for their ability to blend into modern aesthetics. They complement various design themes, enhancing the visual appeal of both interiors and exteriors.
Stainless steel pipe fittings are essential components across multiple industries, providing durable, reliable solutions in challenging environments. Let's explore the key industries that rely on these fittings.
The importance of stainless steel fittings in harsh conditions
In the oil and gas industry, pipelines often operate in extreme conditions, such as high pressures, fluctuating temperatures, and corrosive environments. Stainless steel’s ability to withstand these harsh conditions makes it the ideal choice for maintaining system integrity.
Applications in pipelines and refineries
Stainless steel fittings are used extensively in pipeline systems, refineries, and offshore platforms, where they connect and secure pipes, ensuring smooth and safe transport of oil and gas.
Why stainless steel is preferred for chemical plants
Chemical plants deal with highly corrosive substances, making it essential for their piping systems to resist chemical reactions. Stainless steel fittings offer excellent resistance to a variety of chemicals, ensuring system durability and safety.
Resistance to chemicals and extreme temperatures
These fittings can withstand both corrosive chemicals and high temperatures, making them ideal for handling aggressive substances in processes like acid production and petrochemical refining.
The hygienic nature of stainless steel fittings
In the food and beverage industry, hygiene is crucial. Stainless steel’s smooth, non-porous surface prevents bacterial growth, making it the preferred material for food transportation systems.
Applications in liquid and gas transportation
These fittings are used to transport liquids and gases such as milk, beer, juice, and CO2. Stainless steel ensures that these substances remain untainted by contaminants, maintaining product quality and safety.
Stainless steel fittings' role in maintaining sanitary systems
The pharmaceutical and medical industries rely on stainless steel fittings to ensure their systems are sterile. Stainless steel’s resistance to bacteria and ease of cleaning make it the ideal choice for maintaining sanitary conditions.
Structural applications and aesthetic appeal in buildings and public infrastructure
Stainless steel fittings are often used in construction for their strength and aesthetic appeal. These fittings provide structural integrity in building frames, bridges, and other infrastructure, while also contributing to modern architectural designs with their sleek, polished appearance.
Choosing the right stainless steel pipe fittings for your project is crucial to ensure system safety, efficiency, and longevity. Here are the key factors to consider when making your decision.
Pressure
The pressure requirements of your system will dictate the strength of the fittings you need. Stainless steel fittings are designed to withstand high-pressure environments, but it's important to choose the correct type based on the specific pressure your system will experience.
Temperature
Temperature plays a major role in material selection. Fittings must be able to maintain their integrity under varying temperature conditions. Stainless steel's resistance to high temperatures makes it a great option, but you’ll need to consider the specific temperature ranges for your application.
Fluid Type
The type of fluid being transported influences your choice of fittings. Stainless steel is highly resistant to many aggressive chemicals, but for highly corrosive substances, materials like 316 stainless steel may be required for additional protection.
304 Stainless Steel
304 stainless steel is widely used for general applications. It’s durable and resistant to corrosion in mild environments but may not be suitable for highly aggressive chemicals or extreme conditions.
316 Stainless Steel
316 stainless steel offers superior corrosion resistance, particularly against chlorides and harsh chemicals. It’s ideal for applications in chemical processing, marine environments, and food industries, where higher protection is required.
Sizing
Choosing the right size is essential to ensure the fittings connect properly with the pipes. Measure the pipe diameter and wall thickness, and match it with the corresponding fitting size to maintain flow efficiency and pressure control.
Compatibility with Existing Systems
Ensure that the fittings you choose are compatible with the existing pipeline system. This includes checking material compatibility, threading or welding requirements, and ensuring the fittings will work within the system’s operational limits.
Stainless steel pipe fittings come in various types, each designed for specific applications, including elbows, tees, and reducers. Their superior corrosion resistance, strength, and ability to withstand high temperatures make them ideal for harsh environments like oil and gas, chemical processing, and food industries. When choosing the right fittings, consider factors like pressure, temperature, and fluid type to ensure optimal performance and reliability.
A: The most common types include elbows, tees, reducers, caps, couplings, flanges, crosses, and unions. Each type serves a specific function, such as changing direction, connecting pipes, or sealing ends.
A: Stainless steel is preferred for its corrosion resistance, durability, high strength, and ability to withstand extreme temperatures. It is ideal for industries like oil and gas, chemical processing, and food manufacturing.
A: Yes, stainless steel fittings are designed to handle high pressures and temperatures, making them suitable for use in industries like oil and gas and chemical processing.
